GELOMAT – Automatic Capsule Hardness Tester

Model: FZT BRS GELMT01

GEL CAPSULE HARDNESS TESTING FOR MEDICAL PHARMA INDUSTRY

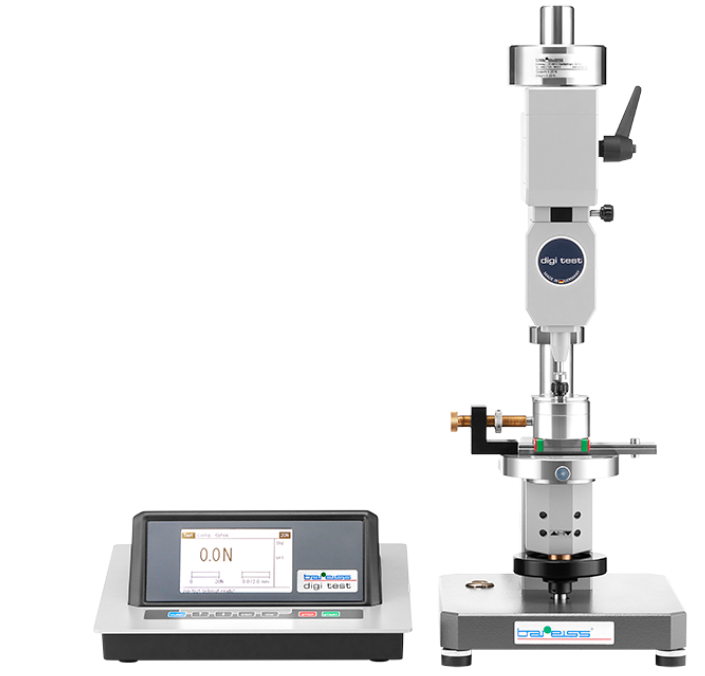

Digi test II Gelomat is a capsule hardness tester developed specifically for soft capsules: digitest II-Gelomat is an innovative testing device that was developed by Bareiss for the assured quality control on gelatin capsules.

Range of application: Modular and digital hardness testing system for hardness determination on soft elastic materials e.g. gelatin, gelatin capsules, plasticine etc.
Two pressure application options are available, 0-2 N or 0-20 N, which can be easily replaced as required.

Gelatin capsules positioning devices:
Bareiss can customize different holding discs based on the shape, dimension and quantity of gelatin capsules being tested.

  • SIZE AND WEIGHT

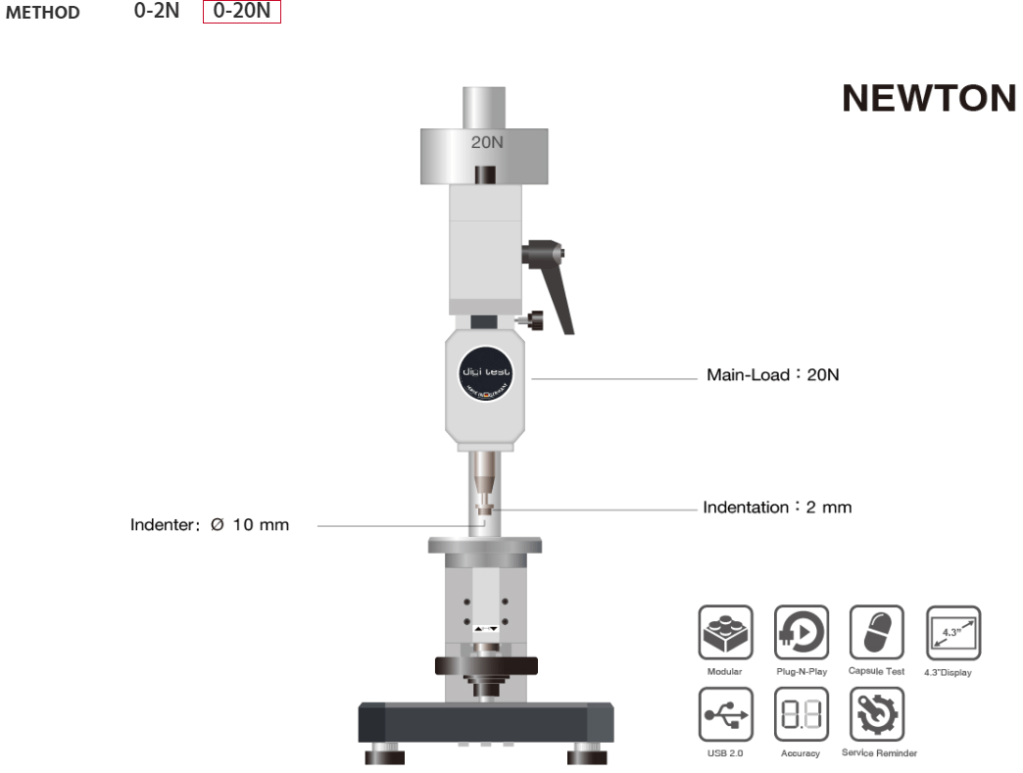

    • METHOD 0-2N and 0-20N ranges

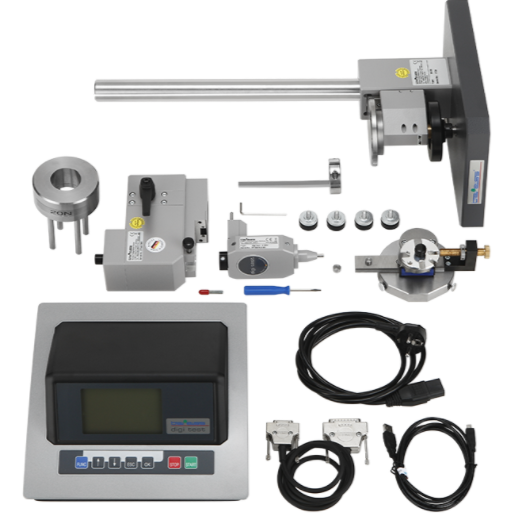

ACCESSORIES

  1. Centrofix for Digi Test Gelomat – For the exact centering of gelatin capsules

Centrofix for Digi Test Gelomat - Bareiss North America

2. Hardtest – the test – and evaluation software program

Hardest the test and evaluation software program - Bareiss North America
Applicable for all electronic Bareiss testing devices with a serial interface. The programme contains all functions which are necessary for a faultless process Software-Documentation

3. Works Calibration Certificate Gelomat

Works Calibration Certificate Gelomat - Bareiss North America

GELOMAT – Automatic Capsule Hardness Tester
