FULLY AUTOMATIC DUROMETER – Digi Test II

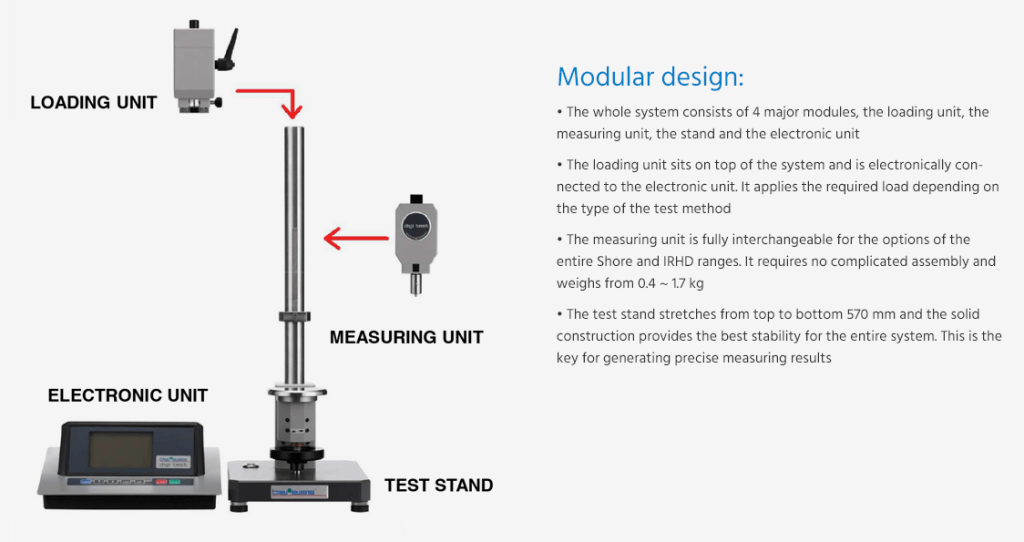

Digi test II – a modularized tester for Shore, IRHD and VLRH: The highly intelligent digitest II is equipped with an electronic unit which serves as the main control of the entire system and the display of the user’s information for measuring time, method, measurement and various selectable features.

Hardness testing on convex and concave surfaces: Unlike the conventional hardness testers which are limited to only flat-surfaced samples, measuring with the Bareiss digitest II allows hardness testing on all surfaces possible by using the automatic surface detection technology. In addition to that, we can customize our indenter length so that it can reach any point on the sample which is required for measuring.

Sample holders and positioning devices: Bareiss offers a wide range of standard sample holders, but we also specialize in customizing holders for your particular products. Please contact the sales team for your individual solution.

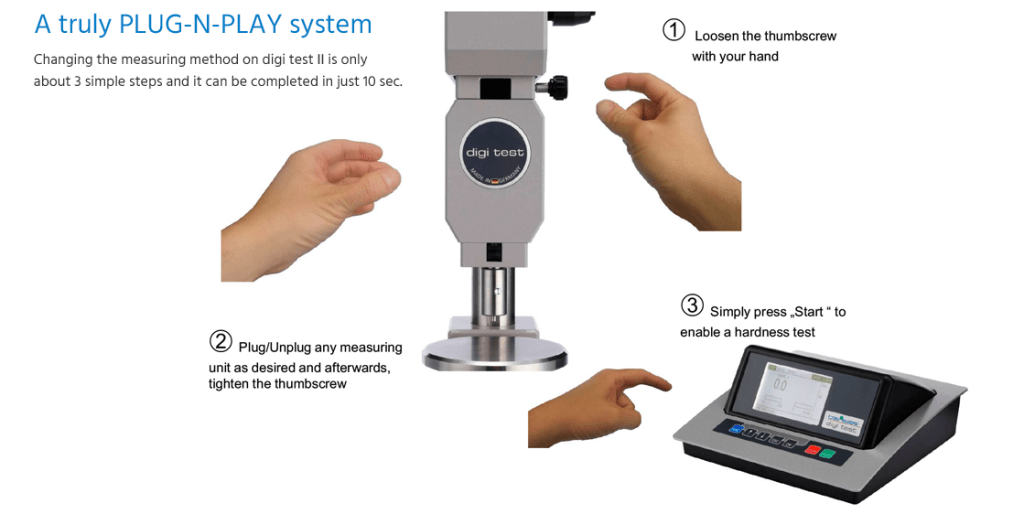

Measuring Devices: The easy plug-and-play solution requires no complicated setup. The measuring unit can be securely installed simply by hand fastening a knurl nut and once done, the electronic unit automatically detects the type of the installed measuring method in accordance to that standard.

MEASURING DEVICES

The easy plug-and-play solution requires no complicated setup. The measuing unit can be securely installed simply by hand fastening a knurl nut and once done, the electronic unit automatically detects the type of the installed measuing method and time acc. to standards.

IRHD N/H/L

for soft rubber, highly elastic materials and plastically deformable materials of a material thickness from 6 up to 10 mm

IRHD L

from 10 up to 12 mm Hysteresis function

Shore 00/000

for sponge and cellular rubber, foam rubber, silicone, similar to gel materials from a material thickness of 6 mm Hysteresis function

VLRH

for sponge and cellular rubber, foam rubber, silicone, similar to gel materials from a material thickness of 1 mm

Hysteresis function

Shore A/B/0

for concave and convex moulded parts of a material thickness of 4 or 6 mm

Micro Shore A

Sample thickness at least 1.5 mm, measuring path 1 mm

Shore D/C/D0

for moulded parts of a material thickness of 4 or 6 mm

Micro Shore D

Sample thickness at least 1 mm, measuring path 0.5 mm

Shore A/D

for flat plate materials of a material thickness of 4 or 6 mm
